Python实现Excel数据查找与高亮标记

作者：袖梨 2026-06-02

数据可视化是高效分析的关键，通过Spire.XLS库可快速实现Excel数据高亮显示，显著提升工作效率。本文将详细介绍文本查找、条件格式化等多种高亮技术，帮助构建完整的数据可视化方案。

环境准备

使用前需安装Spire.XLS库，执行以下pip命令即可完成安装：

pip install Spire.XLS

安装成功后，即可在Python项目中调用该库进行Excel文档操作。

查找并高亮的应用场景

Excel数据高亮功能在多个场景中发挥重要作用：

数据审查：突出显示含特定关键词的单元格
异常检测：标记超出正常范围的数据
重复数据识别：快速发现重复记录
排名分析：强调最高或最低数值
趋势分析：标识高于或低于平均值的数据
关键字段标注：对重要数据进行视觉强化

Spire.XLS提供两种高亮方式：直接设置单元格背景色适合静态高亮，条件格式化则能随数据变化自动更新。

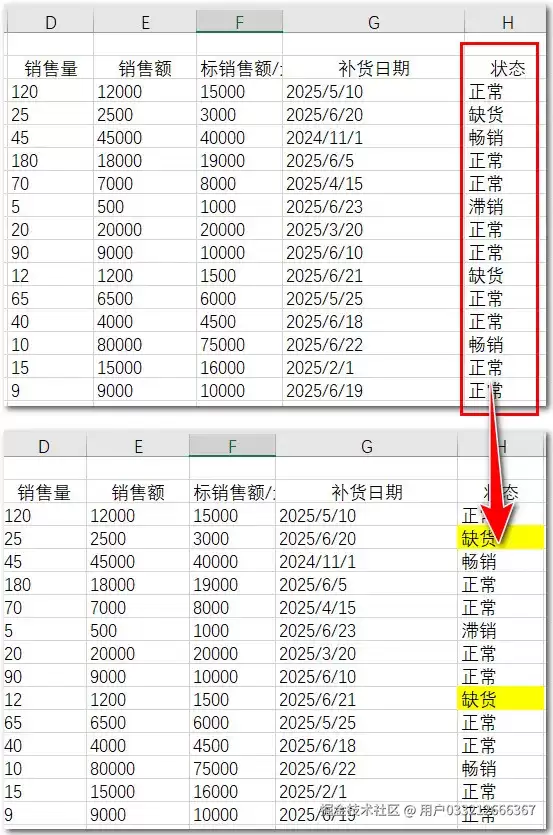

查找文本并高亮显示

基础操作是搜索特定文本并为匹配单元格设置背景色，以下代码演示具体实现：

from spire.xls import *
from spire.xls.common import *def FindAndHighlightText():
    inputFile = "/input/销售报告.xlsx"
    outputFile = "/output/FindAndHighlight.xlsx"
    workbook = Workbook()
    workbook.LoadFromFile(inputFile)
    worksheet = workbook.Worksheets[0]
    ranges = worksheet.FindAllString("缺货", True, True)
    for range in ranges:
        range.Style.Color = Color.get_Yellow()
    workbook.SaveToFile(outputFile, ExcelVersion.Version2010)
    workbook.Dispose()if __name__ == "__main__":
    FindAndHighlightText()

通过FindAllString()方法查找匹配单元格，前两个布尔参数控制大小写敏感和完全匹配。该方法适合一次性高亮操作，效果会永久保存。

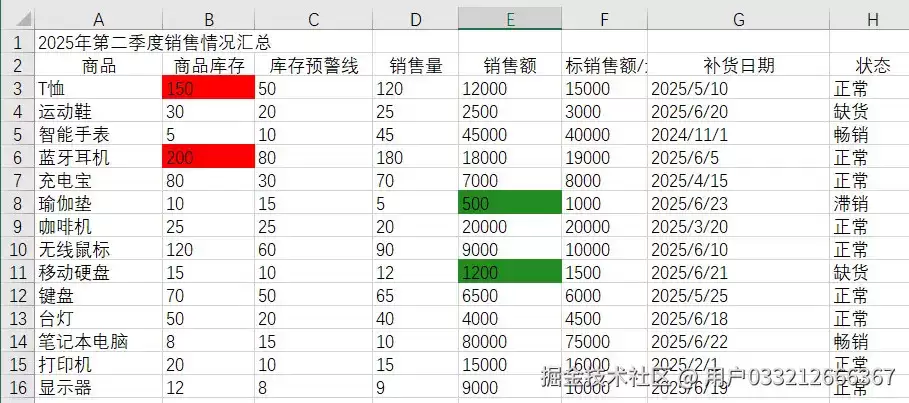

使用条件格式化高亮排名前后的值

条件格式化能动态应用格式，以下代码展示如何高亮极值：

from spire.xls import *
from spire.xls.common import *def HighlightRankedValues():
    inputFile = "/input/销售报告.xlsx"
    outputFile = "/HighlightRankedValues.xlsx"
    workbook = Workbook()
    workbook.LoadFromFile(inputFile)
    sheet = workbook.Worksheets[0]
    xcfs = sheet.ConditionalFormats.Add()
    xcfs.AddRange(sheet.Range["B3:B16"])
    format1 = xcfs.AddTopBottomCondition(TopBottomType.Top, 2)
    format1.FormatType = ConditionalFormatType.TopBottom
    format1.BackColor = Color.get_Red()
    xcfs1 = sheet.ConditionalFormats.Add()
    xcfs1.AddRange(sheet.Range["E3:E16"])
    format2 = xcfs1.AddTopBottomCondition(TopBottomType.Bottom, 2)
    format2.FormatType = ConditionalFormatType.TopBottom
    format2.BackColor = Color.get_ForestGreen()
    workbook.SaveToFile(outputFile, ExcelVersion.Version2010)
    workbook.Dispose()if __name__ == "__main__":
    HighlightRankedValues()

AddTopBottomCondition()方法可指定高亮极值类型和数量，动态特性使其适合销售分析等场景。

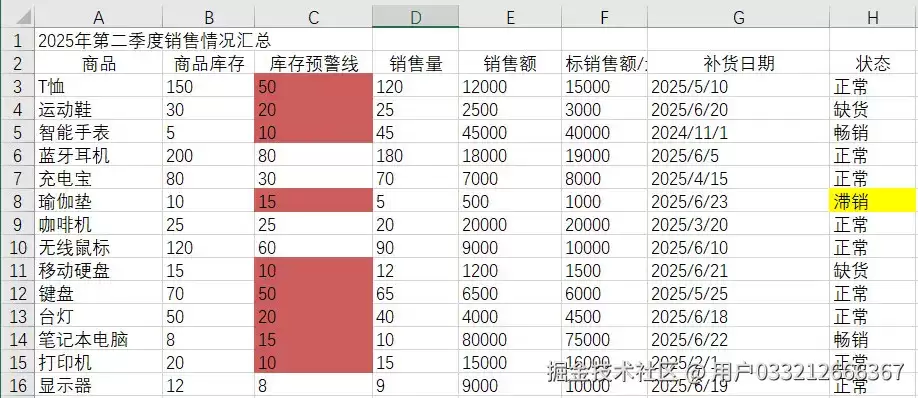

高亮显示重复值和唯一值

数据清理时识别重复和唯一数据很重要，以下代码实现该功能：

from spire.xls import *
from spire.xls.common import *def HighlightDuplicateAndUnique():
    inputFile = "/input/销售报告.xlsx"
    outputFile = "/HighlightDuplicateUniqueValues.xlsx"
    workbook = Workbook()
    workbook.LoadFromFile(inputFile)
    sheet = workbook.Worksheets[0]
    xcfs = sheet.ConditionalFormats.Add()
    xcfs.AddRange(sheet.Range["C3:C16"])
    format1 = xcfs.AddCondition()
    format1.FormatType = ConditionalFormatType.DuplicateValues
    format1.BackColor = Color.get_IndianRed()
    xcfs1 = sheet.ConditionalFormats.Add()
    xcfs1.AddRange(sheet.Range["H3:H16"])
    format2 = xcfs1.AddCondition()
    format2.FormatType = ConditionalFormatType.UniqueValues
    format2.BackColor = Color.get_Yellow()
    workbook.SaveToFile(outputFile, ExcelVersion.Version2010)
    workbook.Dispose()if __name__ == "__main__":
    HighlightDuplicateAndUnique()

使用DuplicateValues和UniqueValues类型可分别高亮重复和唯一值，在数据验证中非常实用。

高亮显示高于或低于平均值的数据

统计分析时识别异常数据很有价值，以下代码实现该功能：

from spire.xls import *
from spire.xls.common import *def HighlightAverageValues():
    inputFile = "/销售报告.xlsx"
    outputFile = "HighlightAverageValues.xlsx"
    workbook = Workbook()
    workbook.LoadFromFile(inputFile)
    sheet = workbook.Worksheets[0]
    format1 = sheet.ConditionalFormats.Add()
    format1.AddRange(sheet.Range["E2:E10"])
    cf1 = format1.AddAverageCondition(AverageType.Below)
    cf1.BackColor = Color.get_SkyBlue()
    format2 = sheet.ConditionalFormats.Add()
    format2.AddRange(sheet.Range["E2:E10"])
    cf2 = format2.AddAverageCondition(AverageType.Above)
    cf2.BackColor = Color.get_Orange()
    workbook.SaveToFile(outputFile, ExcelVersion.Version2010)
    workbook.Dispose()if __name__ == "__main__":
    HighlightAverageValues()

AddAverageCondition()方法配合AverageType参数可标识异常数据，适用于销售分析和成绩评估等场景。

实用技巧与高级应用

组合使用查找和条件格式化

实际应用中常需组合多种高亮方式，以下工具类封装了常用功能：

from spire.xls import *
from spire.xls.common import *class ExcelHighlighter:
    def __init__(self, input_file):
        self.workbook = Workbook()
        self.workbook.LoadFromFile(input_file)
        self.input_file = input_file

    def highlight_by_text(self, sheet_index, search_text, back_color=None):
        sheet = self.workbook.Worksheets[sheet_index]
        ranges = sheet.FindAllString(search_text, True, True)
        if back_color is None:
            back_color = Color.get_Yellow()
        for range in ranges:
            range.Style.Color = back_color

    def highlight_top_values(self, sheet_index, cell_range, top_count=5):
        sheet = self.workbook.Worksheets[sheet_index]
        xcfs = sheet.ConditionalFormats.Add()
        xcfs.AddRange(sheet.Range[cell_range])
        format_rule = xcfs.AddTopBottomCondition(TopBottomType.Top, top_count)
        format_rule.BackColor = Color.get_Red()

    def save(self, output_file=None):
        if output_file is None:
            output_file = self.input_file
        self.workbook.SaveToFile(output_file, ExcelVersion.Version2013)
        self.workbook.Dispose()def main():
    highlighter = ExcelHighlighter("/SampleData.xlsx")
    highlighter.highlight_by_text(0, "重要", Color.get_Yellow())
    highlighter.highlight_top_values(0, "D2:D20", 3)
    highlighter.save("./Output/HighlightedData.xlsx")if __name__ == "__main__":
    main()

该工具类整合了多种高亮功能，便于在项目中复用和组合使用。

常见应用场景示例

场景1：销售数据审查

def ReviewSalesData():
    highlighter = ExcelHighlighter("./Data/SalesReport.xlsx")
    highlighter.highlight_by_text(0, "紧急", Color.get_Orange())
    highlighter.highlight_top_values(0, "D2:D100", 10)
    highlighter.save("./Output/SalesReview.xlsx")

场景2：学生成绩分析

def AnalyzeStudentGrades():
    highlighter = ExcelHighlighter("./Data/StudentGrades.xlsx")
    highlighter.highlight_by_text(0, "F", Color.get_Red())
    highlighter.highlight_top_values(0, "C2:C50", 5)
    highlighter.save("./Output/GradeAnalysis.xlsx")
