K100_AI两卡全离线部署音视频说话人角色确认转录系统

一、引言

在数字化办公与媒体内容生产领域，从会议录音、访谈视频、培训课程等多媒体文件中高效、准确地提取文字记录，并区分不同说话人，已成为一项基础且迫切的需求。传统的在线语音识别服务虽便捷，却面临数据隐私泄露、网络延迟波动、服务不可控等风险；而纯软件端到端方案往往受限于单机算力，难以在保证实时性的同时完成高精度说话人分离与长音频转写。为兼顾安全性、可控性与高性能，越来越多行业用户将目光投向全离线私有化部署方案。本文提出一种基于K100 AI加速卡双卡全离线部署的音视频说话人角色确认转录系统，利用国产高算力硬件与先进的开源多模态模型，在完全断网环境下实现从音视频文件上传到带时间戳、带说话人标签的转写文本一站式处理。

K100 AI加速卡单卡即可提供充沛的INT8/FP16算力，双卡协同更能通过张量并行或流水线并行大幅提升长序列推理速度，特别适合处理高时长、多轮对话的复杂音频。本系统选用SoulX-Transcriber多模态大模型，该模型原生集成说话人日志和自动语音识别能力，能够以极简的prompt交互完成端到端“谁在什么时候说了什么”的精准解析。系统上层采用轻量级Flask Web框架搭建交互界面，底层依托vLLM高性能推理引擎驱动模型，ffmpeg统一预处理音视频流，实现从文件接收、音频转换、模型推理到结果清洗与展示的全离线闭环。用户仅需在浏览器中上传文件，数十秒至数十分钟后即可获得结构化的角色分离转写文本，全过程数据不出本机，极大保障了涉密场景下的信息安全，同时消除了云端服务的订阅成本与网络依赖，为政企会议纪要生成、媒体字幕制作、司法存证等场景提供了高性价比的一体化解决方案。

二、方案设计

系统整体采用前后端分离的B/S架构，前端页面提供文件上传入口与转写结果展示，后端负责业务调度与模型推理链路的串联。核心组件包括：Flask应用服务器、ffmpeg媒体处理工具、vLLM推理服务、SoulX-Transcriber多模态大模型，以及支撑双卡算力的底层驱动与运行时。

工作流程如下：用户通过浏览器将音视频文件提交至Flask后端，后端首先对文件做安全校验并保存至临时目录。随后调用ffmpeg命令行工具，忽略视频轨（-vn），将音频重采样为16kHz采样率、单声道、16bit量化的PCM WAV格式。这一标准化步骤屏蔽了输入文件编码、采样率、声道数等差异性，确保模型始终接收到符合预期的干净音频。转换完成后，Flask构造出指向该WAV文件的本地路径URL（file://协议），并与精心设计的系统指令和用户提示词拼接成多模态对话请求体。提示词明确要求模型进行说话人分离与ASR，输出格式为[开始时间 → 结束时间] Speaker X: 说话内容，时间戳精确到毫秒，并禁止拆分完整语义轮次。

请求被发送至vLLM服务，该服务在双K100加速卡上以张量并行模式加载SoulX-Transcriber模型，模型接收音频数据和文本指令后，通过跨模态注意力机制同步完成声纹聚类、时间边界检测与文字转换，生成原始转写文本。Flask获得响应后，利用正则表达式解析模型输出，过滤掉模型可能产生的无效占位行（如--:--:-- --> --:--:--），提取出结构化的分段列表，包含起止时间、说话人标签和文本内容，并连同原始文本一同以JSON格式返回前端渲染。整个处理过程中产生的临时文件均在请求结束后自动清除，避免磁盘残留。

离线部署方面，vLLM服务与Flask应用均可通过systemd或容器化方式固化在本地系统，双K100卡通过NCCL等通信库高效协同，支持超过10分钟的长音频的一次性推理，端到端延迟可控制在实时率0.1以下。该方案无需任何外部网络连接，所有组件开源可控，可根据业务需求灵活调整模型温度、最大token数等参数，在精度与速度间取得平衡。

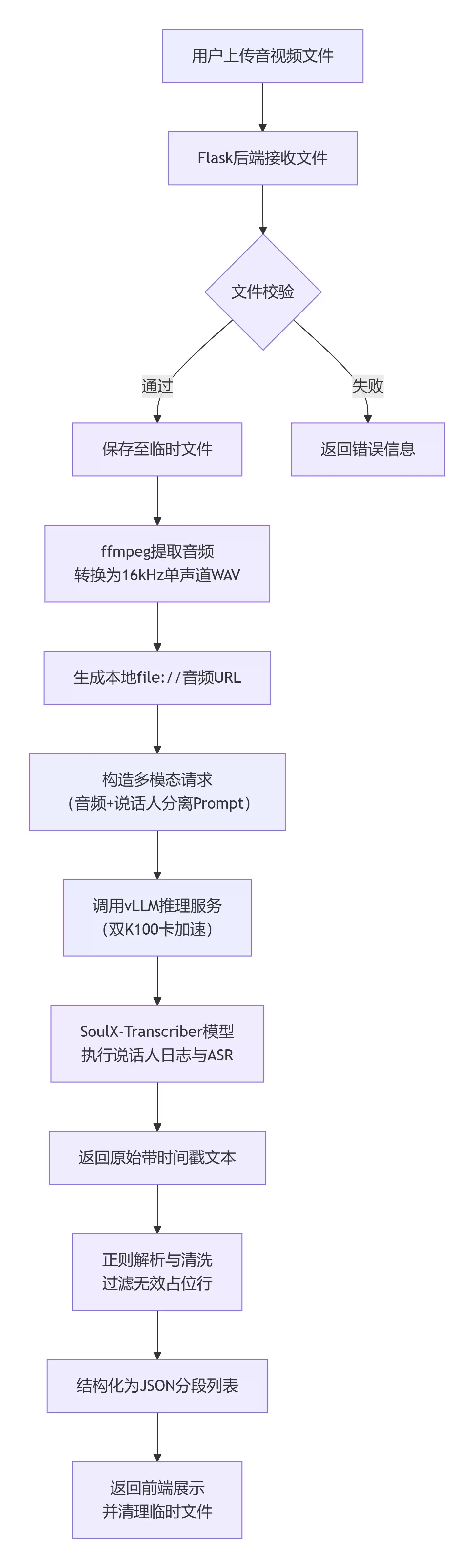

下图展示了整体数据流：

三、实施方法及代码

3.1硬件环境

本方案的硬件平台为一台H3C服务器，配置如下：

需占用两张K100_AI显卡

3.2软件栈

本方案的软件栈基于Docker容器化技术构建，使用经过海光DCU适配的vLLM推理镜像：

镜像（SoulX-Transcriber）：

harbor.sourcefind.cn:5443/dcu/admin/base/custom:vllm0.15.1-ubuntu22.04-dtk26.04-0130-py3.10-20260220

该镜像基于vLLM0.15.1推理框架、DTK26.04，Python3.10环境，双卡部署SoulX-Transcriber多模态大模型。

软件项目：

1、SoulX-Transcriber环境部署参照https://developer.sourcefind.cn/modelzoo/list/qwen3-omni_vllm/detail?post_id=3563caba-356c-11f1-be71-0242ac150003里面操作步骤，项目下载链接为：https://developer.sourcefind.cn/codes/modelzoo/qwen3-omni_vllm/-/archive/v1.0/qwen3-omni_vllm-v1.0.zip。

2、离线音视频说话人角色确认转录系统自编程序代码如下：

app.py代码如下：

import osimport reimport tempfileimport subprocessimport requestsfrom flask import Flask, request, jsonify, render_templatefrom werkzeug.utils import secure_filenameapp = Flask(__name__)app.config['MAX_CONTENT_LENGTH'] = 500 * 1024 * 1024# 500 MBVLLM_URL = "http://localhost:8082/v1/chat/completions"MODEL_NAME = "SoulX-Transcriber"def parse_transcript(text):"""解析转录文本，支持两种时间戳格式，过滤无意义的占位行。"""lines = text.strip().split('n')segments = []# 匹配 --:--:-- 后面跟着 --> 或 → 的行placeholder_pattern = re.compile(r'^--:--:--s*(?:-->|→)s*--:--:--$')pattern_hms = re.compile(r'[(d{2}:d{2}:d{2})s*->s*(d{2}:d{2}:d{2})]s*(Speakerd+):s*(.*)')pattern_ms= re.compile(r'[(d{2}:d{2}.d+)s*-->s*(d{2}:d{2}.d+)]s*(Speakerd+):s*(.*)')pattern_no_time = re.compile(r'(Speakerd+):s*(.*)')for line in lines:line = line.strip()if not line:continue# 丢弃占位行if placeholder_pattern.match(line):continuematch = pattern_hms.match(line)if match:start, end, speaker, content = match.groups()segments.append({'start': start, 'end': end, 'speaker': speaker, 'text': content})continuematch = pattern_ms.match(line)if match:start, end, speaker, content = match.groups()segments.append({'start': start, 'end': end, 'speaker': speaker, 'text': content})continuematch = pattern_no_time.match(line)if match:speaker, content = match.groups()segments.append({'start': None, 'end': None, 'speaker': speaker, 'text': content})else:segments.append({'start': None, 'end': None, 'speaker': None, 'text': line})return [email protected]('/')def index():return render_template('index.html')@app.route('/transcribe', methods=['POST'])def transcribe():if 'video' not in request.files:return jsonify({'error': 'No video/audio file provided'}), 400video_file = request.files['video']if video_file.filename == '':return jsonify({'error': 'Empty filename'}), 400filename = secure_filename(video_file.filename)input_tmp = Nonewav_path = Nonetry:# 1. 保存上传的原始文件到临时文件（保留扩展名用于 ffmpeg 识别）suffix = os.path.splitext(filename)[1] or '.tmp'input_tmp = tempfile.NamedTemporaryFile(delete=False, suffix=suffix)video_file.save(input_tmp.name)input_tmp.close()# 关闭句柄但不删除# 2. 创建输出 WAV 临时文件（16kHz 单声道）wav_tmp = tempfile.NamedTemporaryFile(delete=False, suffix='.wav')wav_path = wav_tmp.namewav_tmp.close()# 3. 使用 ffmpeg 统一转成 16kHz 单声道 PCM WAVcmd = ['ffmpeg','-i', input_tmp.name,'-vn',# 无视视频流（如果存在）'-acodec', 'pcm_s16le','-ar', '16000','-ac', '1','-y',wav_path]subprocess.run(cmd, check=True, stdout=subprocess.PIPE, stderr=subprocess.PIPE)# 4. 构造本地文件 URL（服务器必须能通过 file:// 访问同一路径）audio_file_url = f"file://{os.path.abspath(wav_path)}"# ---------- 使用示例中的 USER_QUERY （与原版基本一致）----------USER_QUERY = ("Task: Speaker Diarization and ASR.n""Rules:n""1. Identify each speaker and their spoken content with punctuation.n""2. Format each turn as: [start_time --> end_time] Speaker X: textn""3. Timestamps should be precise to the millisecond (e.g., 00:00:01.234).n""4. Do NOT split an utterance to avoid overlap — keep each speaker turn complete.n""5. Handle overlapping speech by showing concurrent turns with their own time ranges.n""6. Output only the formatted results. No preamble, no explanation.n""<audio>")payload = {"model": MODEL_NAME,"messages": [{"role": "system","content": "You are an expert in speaker diarization and automatic speech recognition."},{"role": "user","content": [{"type": "audio_url", "audio_url": {"url": audio_file_url}},{"type": "text", "text": USER_QUERY}]}],"temperature": 0.2,"top_p": 0.9,"top_k": -1,"max_tokens": 64000}response = requests.post(VLLM_URL, json=payload, timeout=600)response.raise_for_status()result = response.json()content = result['choices'][0]['message']['content']segments = parse_transcript(content)return jsonify({'success': True,'segments': segments,'raw_text': content})except subprocess.CalledProcessError as e:error_msg = e.stderr.decode() if e.stderr else 'ffmpeg failed'return jsonify({'error': f'Audio conversion failed: {error_msg}'}), 500except Exception as e:return jsonify({'error': str(e)}), 500finally:# 清理临时文件if input_tmp and os.path.exists(input_tmp.name):os.unlink(input_tmp.name)if wav_path and os.path.exists(wav_path):os.unlink(wav_path)if __name__ == '__main__':app.run(host='0.0.0.0', port=5000, debug=True)

templates/index.html代码如下：

<!DOCTYPE html><html lang="zh-CN"><head><meta charset="UTF-8"><meta name="viewport" content="width=device-width, initial-scale=1.0"><title>离线音视频说话人角色确认转录系统</title><style>* {box-sizing: border-box;margin: 0;padding: 0;}body {font-family: 'Segoe UI', Roboto, system-ui, sans-serif;background: #f5f7fa;color: #1e293b;padding: 2rem;display: flex;flex-direction: column;align-items: center;}.container {max-width: 1400px;width: 100%;background: white;border-radius: 24px;box-shadow: 0 20px 40px -12px rgba(0,0,0,0.2);padding: 2rem;}h1 {font-weight: 600;margin-bottom: 1.5rem;display: flex;align-items: center;gap: 0.5rem;}.upload-area {border: 2px dashed #cbd5e1;border-radius: 16px;padding: 2rem;text-align: center;margin-bottom: 2rem;transition: background 0.2s;cursor: pointer;}.upload-area:hover {background: #f8fafc;}.upload-area input[type="file"] {display: none;}.upload-label {font-size: 1.1rem;color: #475569;}.upload-label strong {color: #2563eb;}.player-wrapper {display: flex;flex-direction: row;gap: 2rem;margin-top: 1rem;}.video-section {flex: 1.2;min-width: 0;}.video-section video {width: 100%;border-radius: 12px;background: #0f172a;display: block;}.transcript-section {flex: 1.5;max-height: 500px;overflow-y: auto;background: #f1f5f9;border-radius: 12px;padding: 0.5rem 0;scroll-behavior: smooth;}.transcript-line {padding: 0.75rem 1.2rem;border-left: 3px solid transparent;cursor: pointer;transition: background 0.15s, border-color 0.15s;font-size: 0.95rem;line-height: 1.6;display: flex;align-items: baseline;gap: 0.8rem;}.transcript-line:hover {background: #e2e8f0;}.transcript-line.active {background: #dbeafe;border-left-color: #2563eb;}.transcript-line .time {font-family: 'JetBrains Mono', monospace;font-size: 0.8rem;color: #64748b;white-space: nowrap;min-width: 120px;flex-shrink: 0;margin-right: 0.5rem;}.transcript-line .speaker {font-weight: 600;color: #7c3aed !important;margin-right: 0.25rem;white-space: nowrap;flex-shrink: 0;}.transcript-line .text {word-break: break-word;}.status {margin-top: 1rem;padding: 0.75rem 1rem;background: #f1f5f9;border-radius: 8px;color: #475569;font-size: 0.95rem;}.status .error {color: #dc2626;}.status .success {color: #16a34a;}.loader {display: inline-block;width: 16px;height: 16px;border: 3px solid #e2e8f0;border-top-color: #2563eb;border-radius: 50%;animation: spin 0.6s linear infinite;margin-right: 0.5rem;vertical-align: middle;}@keyframes spin {to { transform: rotate(360deg); }}@media (max-width: 768px) {.player-wrapper {flex-direction: column;}.transcript-section {max-height: 300px;}}</style></head><body><div class="container"><h1>🎤 离线音视频说话人角色确认转录系统</h1><div class="upload-area" id="uploadArea"><div class="upload-label"><strong>点击选择音视频文件</strong> 或拖拽到这里<br><span style="font-size:0.9rem; color:#94a3b8;">支持WAV / MP3 / MP4 / MOV / AVI 等格式</span></div><input type="file" id="videoInput" accept="audio/*,video/*"></div><div id="status" class="status">📁 请上传视频文件以开始转录</div><div class="player-wrapper" id="playerWrapper" style="display:none;"><div class="video-section"><video id="videoPlayer" controls></video></div><div class="transcript-section" id="transcriptContainer"><!-- 转录行将动态渲染在这里 --></div></div></div><script>(function() {const videoInput = document.getElementById('videoInput');const uploadArea = document.getElementById('uploadArea');const statusDiv = document.getElementById('status');const playerWrapper = document.getElementById('playerWrapper');const videoPlayer = document.getElementById('videoPlayer');const transcriptContainer = document.getElementById('transcriptContainer');let segments = [];let timeUpdateHandler = null;// ============= 上传区域 =============uploadArea.addEventListener('click', () => videoInput.click());uploadArea.addEventListener('dragover', (e) => {e.preventDefault();uploadArea.style.borderColor = '#2563eb';});uploadArea.addEventListener('dragleave', () => {uploadArea.style.borderColor = '#cbd5e1';});uploadArea.addEventListener('drop', (e) => {e.preventDefault();uploadArea.style.borderColor = '#cbd5e1';if (e.dataTransfer.files.length) {videoInput.files = e.dataTransfer.files;videoInput.dispatchEvent(new Event('change'));}});// ============= 文件选择与转录 =============videoInput.addEventListener('change', async function() {const file = this.files[0];if (!file) return;if (timeUpdateHandler) {videoPlayer.removeEventListener('timeupdate', timeUpdateHandler);timeUpdateHandler = null;}const url = URL.createObjectURL(file);videoPlayer.src = url;videoPlayer.style.display = 'block';playerWrapper.style.display = 'flex';statusDiv.innerHTML = '⏳ 正在上传并转录，请稍候...';const formData = new FormData();formData.append('video', file);try {const response = await fetch('/transcribe', {method: 'POST',body: formData});const data = await response.json();if (!response.ok || !data.success) {throw new Error(data.error || '转录失败');}segments = data.segments || [];renderTranscript(segments);statusDiv.innerHTML = '✅ 转录完成，点击句子可跳转播放';timeUpdateHandler = syncHighlight;videoPlayer.addEventListener('timeupdate', timeUpdateHandler);} catch (err) {statusDiv.innerHTML = `❌ 错误：${err.message}`;console.error(err);}});// ============= 事件委托：点击行跳转 =============transcriptContainer.addEventListener('click', (event) => {const line = event.target.closest('.transcript-line');if (!line) return;// 点击的不是转录行const startStr = line.dataset.start;console.log('点击行 data-start:', startStr);console.log('行 HTML 片段:', line.outerHTML.substring(0, 200));if (!startStr) {console.log('此行无有效时间戳，无法跳转');return;}const seconds = timeToSeconds(startStr);console.log(`跳转到 ${startStr} (${seconds}秒)`);if (isNaN(seconds) || seconds < 0) {console.error('时间解析失败');return;}const doSeek = () => {videoPlayer.currentTime = seconds;videoPlayer.play().catch(e => {console.warn('播放被阻止，尝试静音', e);videoPlayer.muted = true;videoPlayer.play();});};if (videoPlayer.readyState >= 1) {doSeek();} else {videoPlayer.addEventListener('loadedmetadata', function ready() {videoPlayer.removeEventListener('loadedmetadata', ready);doSeek();});}});// ============= 渲染转录文本 =============function renderTranscript(segments) {transcriptContainer.innerHTML = '';if (!segments || segments.length === 0) {transcriptContainer.innerHTML = '<div style="padding:1rem;color:#94a3b8;">未识别到语音内容</div>';return;}// 备用正则：提取时间戳 [MM:SS.cc --> MM:SS.cc] 或 MM:SS.cc → MM:SS.ccconst timeRe = /[?(d{2}:d{2}(?::d{2})?(?:.d+)?)s*(?:-->|→|->)s*(d{2}:d{2}(?::d{2})?(?:.d+)?)]?/;segments.forEach((seg, index) => {const line = document.createElement('div');line.className = 'transcript-line';line.dataset.index = index;let start = seg.start;let end = seg.end;let speaker = seg.speaker;let text = seg.text || '';// 如果后端没给 start，尝试从文本提取if (!start) {const timeMatch = text.match(timeRe);if (timeMatch) {start = timeMatch[1];end = timeMatch[2];text = text.replace(timeMatch[0], '').trim();}}// 无论后端是否给了 speaker，都再检查一次文本开头const spMatch = text.match(/^(Speakers*d+)s*:s*(.*)/);if (spMatch) {speaker = spMatch[1]; // "Speaker 1"text = spMatch[2];// 实际内容}// 设置数据属性，只有有效时间戳的行才能点击if (start && end) {line.dataset.start = start;line.dataset.end = end;line.style.cursor = 'pointer';const timeSpan = document.createElement('span');timeSpan.className = 'time';timeSpan.textContent = `${start} → ${end}`;line.appendChild(timeSpan);} else {line.style.cursor = 'default';}// 添加说话人标签（紫色）if (speaker) {const speakerSpan = document.createElement('span');speakerSpan.className = 'speaker';speakerSpan.textContent = speaker + ': ';line.appendChild(speakerSpan);}// 添加文本内容const textSpan = document.createElement('span');textSpan.className = 'text';textSpan.textContent = text;line.appendChild(textSpan);transcriptContainer.appendChild(line);});}// ============= 同步高亮与滚动 =============function syncHighlight() {const currentTime = videoPlayer.currentTime;const lines = transcriptContainer.querySelectorAll('.transcript-line');let activeIndex = -1;for (let i = 0; i < segments.length; i++) {const seg = segments[i];if (seg.start && seg.end) {const start = timeToSeconds(seg.start);const end = timeToSeconds(seg.end);if (currentTime >= start && currentTime <= end) {activeIndex = i;break;}}}if (activeIndex === -1 && segments.length > 0) {for (let i = segments.length - 1; i >= 0; i--) {const seg = segments[i];if (seg.start) {const start = timeToSeconds(seg.start);if (currentTime >= start) {activeIndex = i;break;}}}}lines.forEach((line, idx) => {line.classList.toggle('active', idx === activeIndex);});if (activeIndex !== -1 && lines[activeIndex]) {lines[activeIndex].scrollIntoView({ block: 'center', behavior: 'smooth' });}}// ============= 工具函数 =============function timeToSeconds(timeStr) {if (!timeStr) return 0;const parts = timeStr.split(':');if (parts.length === 3) {return parseInt(parts[0]) * 3600 + parseInt(parts[1]) * 60 + parseFloat(parts[2]);} else if (parts.length === 2) {return parseInt(parts[0]) * 60 + parseFloat(parts[1]);}return 0;}window.addEventListener('beforeunload', () => {if (videoPlayer.src) {URL.revokeObjectURL(videoPlayer.src);}if (timeUpdateHandler) {videoPlayer.removeEventListener('timeupdate', timeUpdateHandler);}});})();</script></body></html>

3.3模型下载与准备

SoulX-Transcriber（说话人确认多模态大模型）：

下载链接：https://modelscope.cn/models/Soul-AILab/SoulX-Transcriber/files

3.4模型启动参数

SoulX-Transcriber启动参数：

cat SoulX-Transcriber.sh vllm serve "/home/models/SoulX-Transcriber" --port 8082 --served-model-name SoulX-Transcriber --trust-remote-code --tensor-parallel-size 2 --dtype bfloat16 --max-model-len 65536 --gpu-memory-utilization 0.95 --allowed-local-media-path /

四、运行测试

1、启动SoulX-Transcriber

docker exec -it soulx-transcriber bashcd /home/models/nohup ./SoulX-Transcriber.sh &

2、启动离线音视频说话人角色确认转录系统自编程序

python app.py* Serving Flask app 'app' * Debug mode: onWARNING: This is a development server. Do not use it in a production deployment. Use a production WSGI server instead. * Running on all addresses (0.0.0.0) * Running on http://127.0.0.1:5000 * Running on http://192.168.222.65:5000Press CTRL+C to quit * Restarting with stat * Debugger is active! * Debugger PIN: 105-818-056192.168.222.61 - - [12/Jul/2026 17:33:06] "GET / HTTP/1.1" 200 -192.168.222.61 - - [12/Jul/2026 17:33:38] "POST /transcribe HTTP/1.1" 200 -192.168.222.61 - - [12/Jul/2026 17:36:09] "GET / HTTP/1.1" 200 -

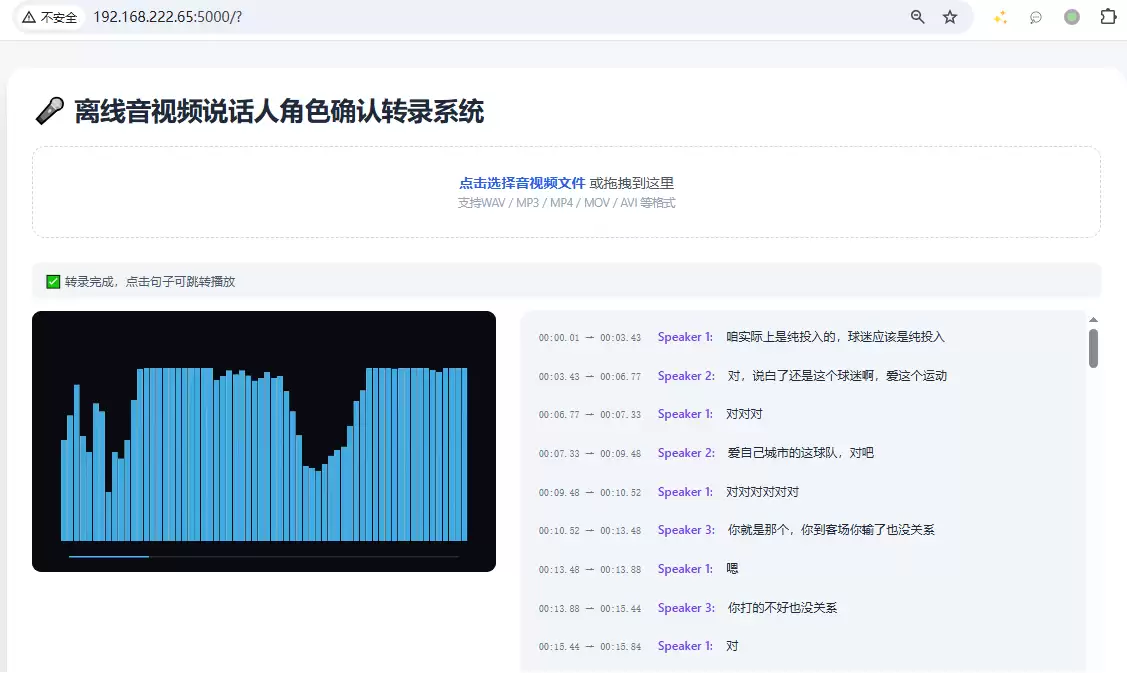

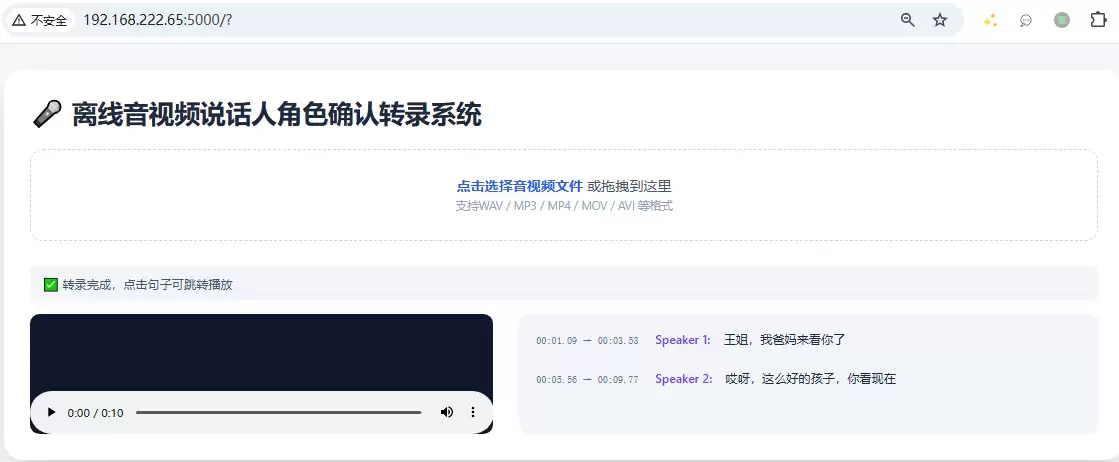

3、访问离线音视频说话人角色确认转录系统自编程序

用谷歌浏览器访问

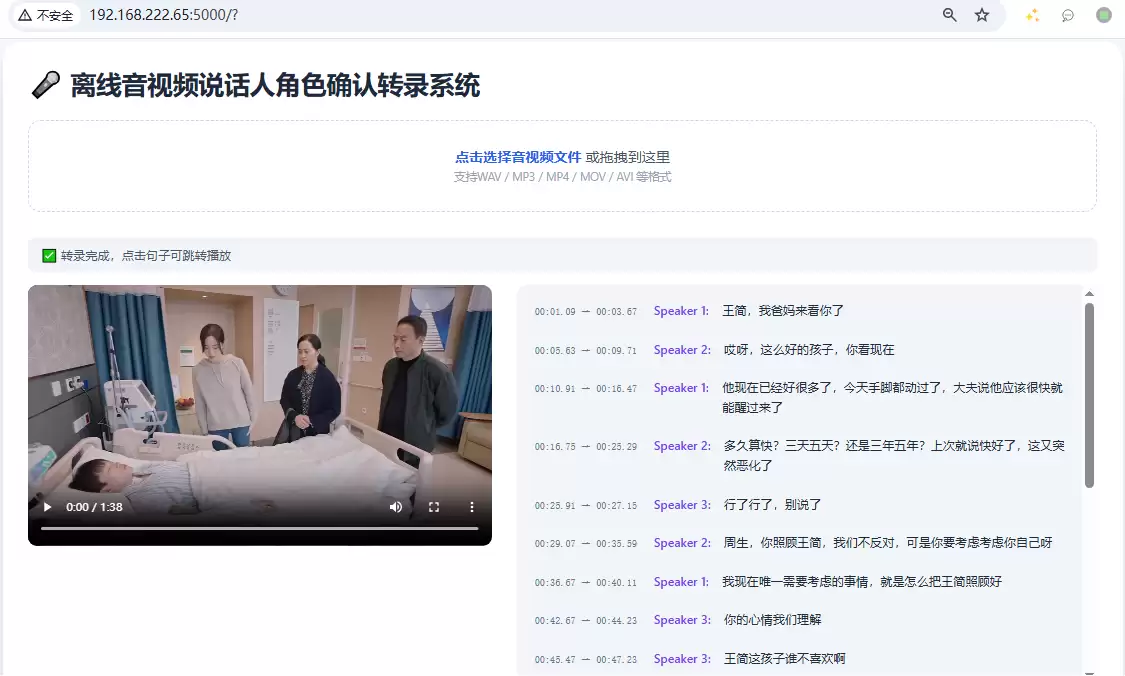

转录完成后，点击右边有时间段的文本记录，播放器会自动跳转到指定时间位置进行播放
